PUMPDEPOT
2150 Pump Poly/TFE by Graco
Parts · Graco

2150 Pump Poly/TFE

SKU DF2911

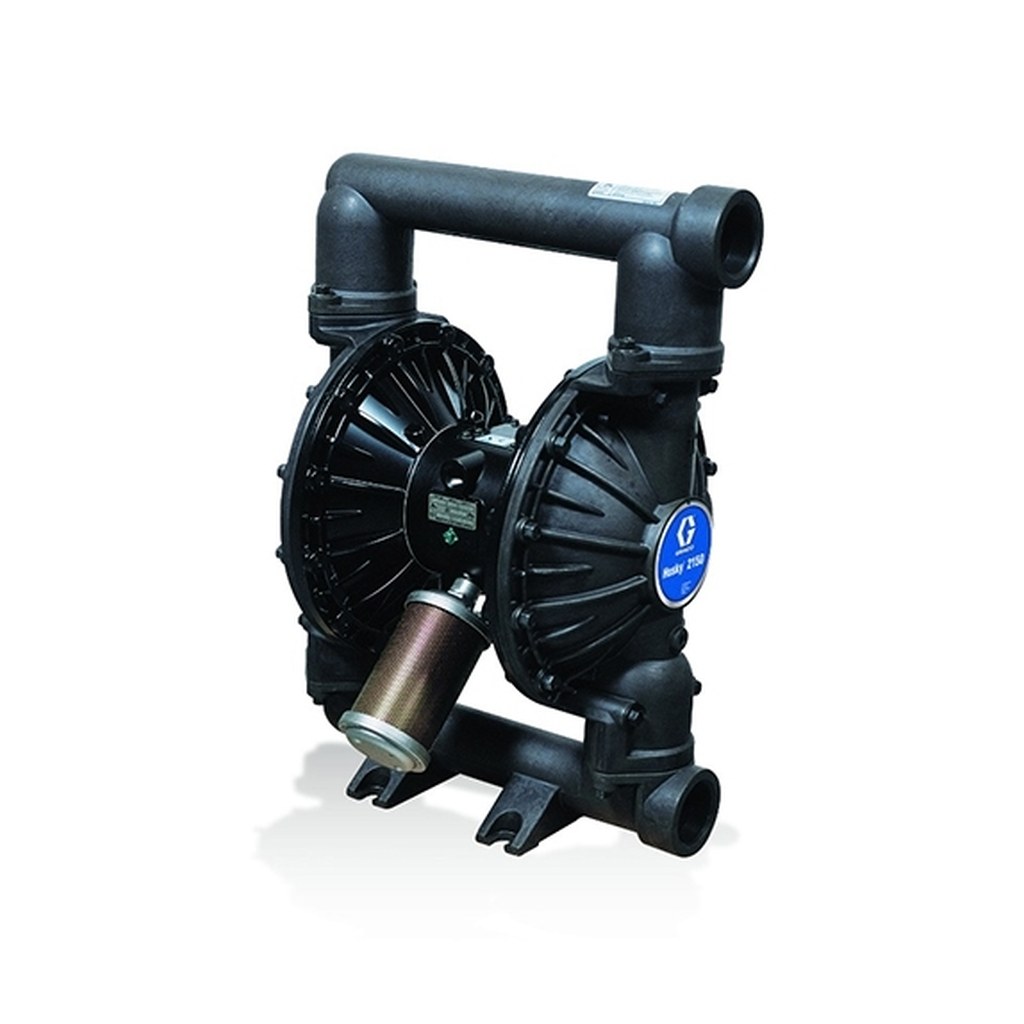

Graco Husky 2150 air-operated double-diaphragm pump, Graco part number DF2911: PP 2 in. (51 mm) NPT Standard Pump, AL Center Section, PP Seats, PTFE Balls & PTFE Diaphragm. Graco rates it at up to 150 gpm and 120 psi maximum fluid pressure, with a 120 psi maximum air inlet pressure and solids up to 0.25 in. Air-operated diaphragm pumps self-prime, can run dry and stall against a closed discharge without damage, which suits general transfer of chemicals, paints, coatings and wastewater. Match the wetted materials to the fluid before ordering. Stocked at Pump Depot in Kitchener, Ontario.

$5,460.00

2 in stock · ships in 2–5 business days

1
View cart
Part number
DF2911
Manufacturer
Graco
Availability
2 on hand
Fits
Graco Husky 2150
Type
Air-operated double-diaphragm (AODD) pump, Graco Husky 2150
Graco description
Husky 2150 PP 2 in. (51 mm) NPT Standard Pump, AL Center Section, PP Seats, PTFE Balls & PTFE Diaphragm
Fluid section
Polypropylene
Center section
Aluminum
Seats / balls / diaphragm
Polypropylene / PTFE / PTFE/EPDM 2-Piece
Wetted materials
Polypropylene, Aluminum, PTFE/EPDM
Fluid ports
2" inlet / 2" outlet, NPT
Air inlet
1/2" NPT
Max fluid pressure
120 psi (8 bar)
Max air pressure
120 psi
Max flow
150 gpm (568 L/min)
Max cycle rate
145 cycles/min
Max air consumption
175 scfm
Max solids
0.25 in
Operating temperature
Max 150 °F
Standards
CE
Pump weight (Graco)
49 lb
Shipping weight
49 lb (22.2 kg)
