1590 Pump Aluminum/Geolast
SKU DB3GGG

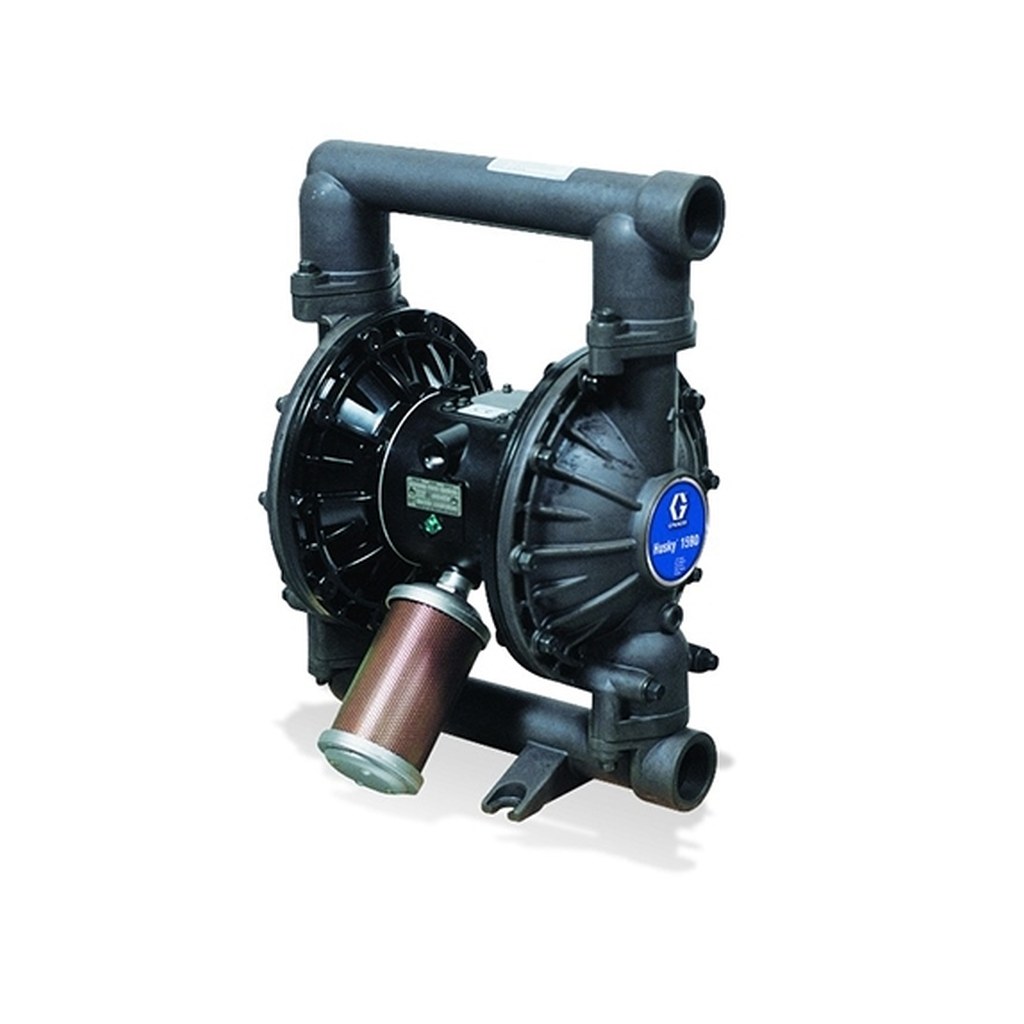

Graco Husky 1590 air-operated double-diaphragm pump, Graco part number DB3GGG: AL 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, GE Seats, GE Balls & GE Diaphragm. Graco rates it at up to 100 gpm and 120 psi maximum fluid pressure, with a 120 psi maximum air inlet pressure and solids up to 0.1875 in. Air-operated diaphragm pumps self-prime, can run dry and stall against a closed discharge without damage, which suits general transfer of chemicals, paints, coatings and wastewater. Match the wetted materials to the fluid before ordering. Stocked at Pump Depot in Kitchener, Ontario.
$1,602.00
2 in stock · ships in 2–5 business days
- Part number
- DB3GGG
- Manufacturer
- Graco
- Availability
- 2 on hand
- Fits
- Graco Husky 1590
- Type
- Air-operated double-diaphragm (AODD) pump, Graco Husky 1590
- Graco description
- Husky 1590 AL 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, GE Seats, GE Balls & GE Diaphragm
- Fluid section
- Aluminum
- Center section
- Aluminum
- Seats / balls / diaphragm
- G.E.T. (Graco Engineered Thermoplastic) / G.E.T. (Graco Engineered Thermoplastic) / G.E.T. (Graco Engineered Thermoplastic)
- Fluid ports
- 1-1/2" inlet / 1-1/2" outlet, NPT
- Air inlet
- 1/2" NPT
- Max fluid pressure
- 120 psi (8 bar)
- Max air pressure
- 120 psi
- Max flow
- 100 gpm (379 L/min)
- Max cycle rate
- 200 cycles/min
- Max air consumption
- 125 scfm
- Max solids
- 0.1875 in
- Operating temperature
- Max 150 °F
- Standards
- ATEX, CE
- Pump weight (Graco)
- 33.5 lb
- Shipping weight
- 33.5 lb (15.2 kg)
