515 Pump Acetal/Poly/Teflon
SKU D51911

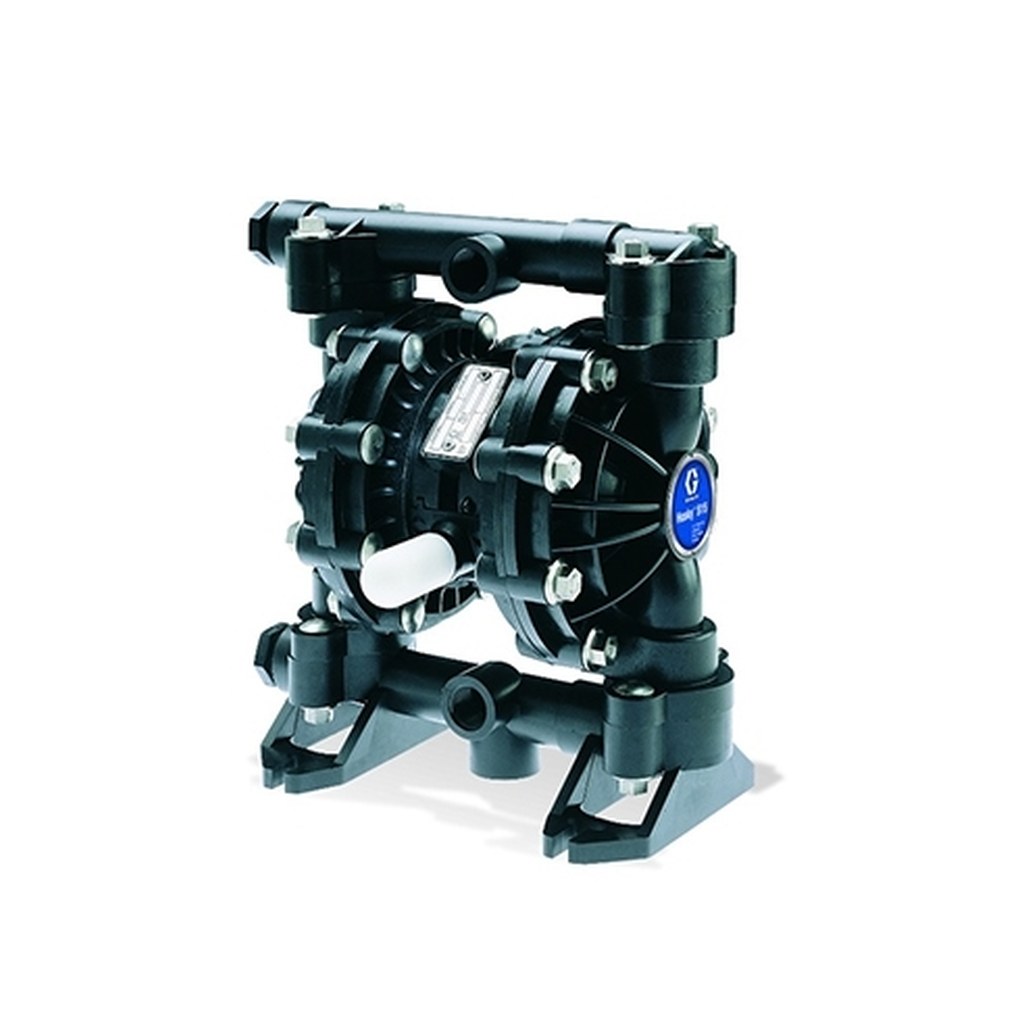

Graco Husky 515 air-operated double-diaphragm pump, Graco part number D51911: AC 1/2 in NPT Standard Pump, PP Center Section, PP Seats, PTFE Balls & PTFE Diaphragm. Graco rates it at up to 15 gpm and 100 psi maximum fluid pressure, with a 100 psi maximum air inlet pressure and solids up to 0.09375 in. Air-operated diaphragm pumps self-prime, can run dry and stall against a closed discharge without damage, which suits general transfer of chemicals, paints, coatings and wastewater. Match the wetted materials to the fluid before ordering. Stocked at Pump Depot in Kitchener, Ontario.
$1,053.00
2 in stock · ships in 2–5 business days
- Part number
- D51911
- Manufacturer
- Graco
- Availability
- 2 on hand
- Fits
- Graco Husky 515
- Type
- Air-operated double-diaphragm (AODD) pump, Graco Husky 515
- Graco description
- Husky 515 AC 1/2 in NPT Standard Pump, PP Center Section, PP Seats, PTFE Balls & PTFE Diaphragm
- Fluid section
- Acetal
- Center section
- Polypropylene
- Seats / balls / diaphragm
- Polypropylene / PTFE / PTFE/EPDM 2-Piece
- Fluid ports
- 1/2" inlet / 1/2" outlet, NPT
- Air inlet
- 1/4" NPT
- Max fluid pressure
- 100 psi (7 bar)
- Max air pressure
- 100 psi
- Max flow
- 15 gpm (56.8 L/min)
- Max cycle rate
- 400 cycles/min
- Max air consumption
- 28 scfm
- Max solids
- 0.09375 in
- Operating temperature
- 40–180 °F
- Standards
- ATEX, CE
- Pump weight (Graco)
- 7.8 lb
- Shipping weight
- 7.8 lb (3.5 kg)
