307 Pump Poly/Santo
SKU D32966

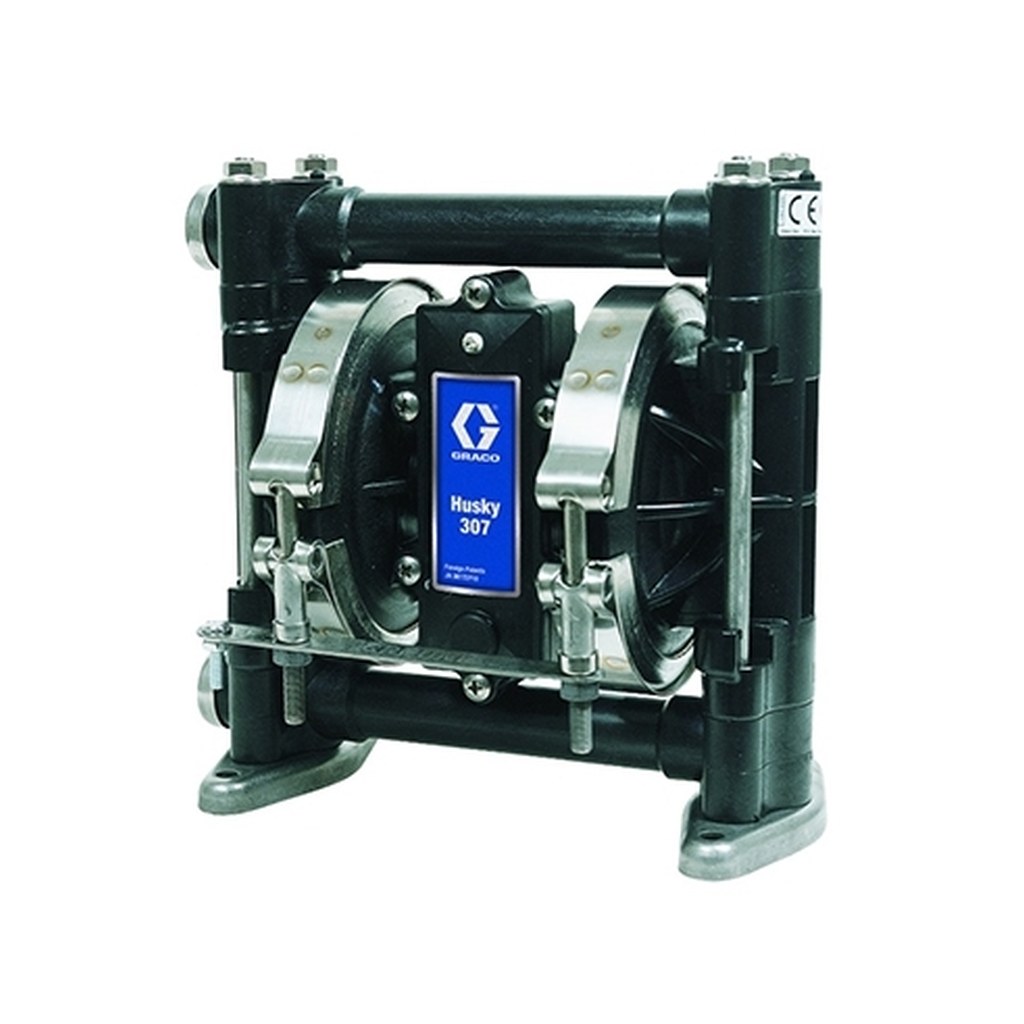

Graco Husky 307 air-operated double-diaphragm pump, Graco part number D32966: PP 3/8 in. (9.52 mm) NPT Standard Pump, PP Center Section, PP Seats, SP Balls & SP Diaphragm. Graco rates it at up to 6.5 gpm and 100 psi maximum fluid pressure, with a 100 psi maximum air inlet pressure and solids up to 0.0625 in. Air-operated diaphragm pumps self-prime, can run dry and stall against a closed discharge without damage, which suits general transfer of chemicals, paints, coatings and wastewater. Match the wetted materials to the fluid before ordering. Stocked at Pump Depot in Kitchener, Ontario.
$541.20
1 in stock · ships in 2–5 business days
- Part number
- D32966
- Manufacturer
- Graco
- Availability
- 1 on hand
- Fits
- Graco Husky 307
- Type
- Air-operated double-diaphragm (AODD) pump, Graco Husky 307
- Graco description
- Husky 307 PP 3/8 in. (9.52 mm) NPT Standard Pump, PP Center Section, PP Seats, SP Balls & SP Diaphragm
- Fluid section
- Polypropylene
- Center section
- Polypropylene
- Seats / balls / diaphragm
- Polypropylene / Santoprene / Santoprene
- Fluid ports
- 3/8" inlet / 3/8" outlet, NPT
- Air inlet
- 1/4" NPT
- Max fluid pressure
- 100 psi (7 bar)
- Max air pressure
- 100 psi
- Max flow
- 6.5 gpm (24.6 L/min)
- Max cycle rate
- 330 cycles/min
- Max air consumption
- 5.5 scfm
- Max solids
- 0.0625 in
- Operating temperature
- 40–150 °F
- Standards
- CE
- Pump weight (Graco)
- 4.75 lb
- Shipping weight
- 4.75 lb (2.2 kg)
