205 Pump Kynar/TFE by Graco
Parts · Graco

205 Pump Kynar/TFE

SKU D150A1

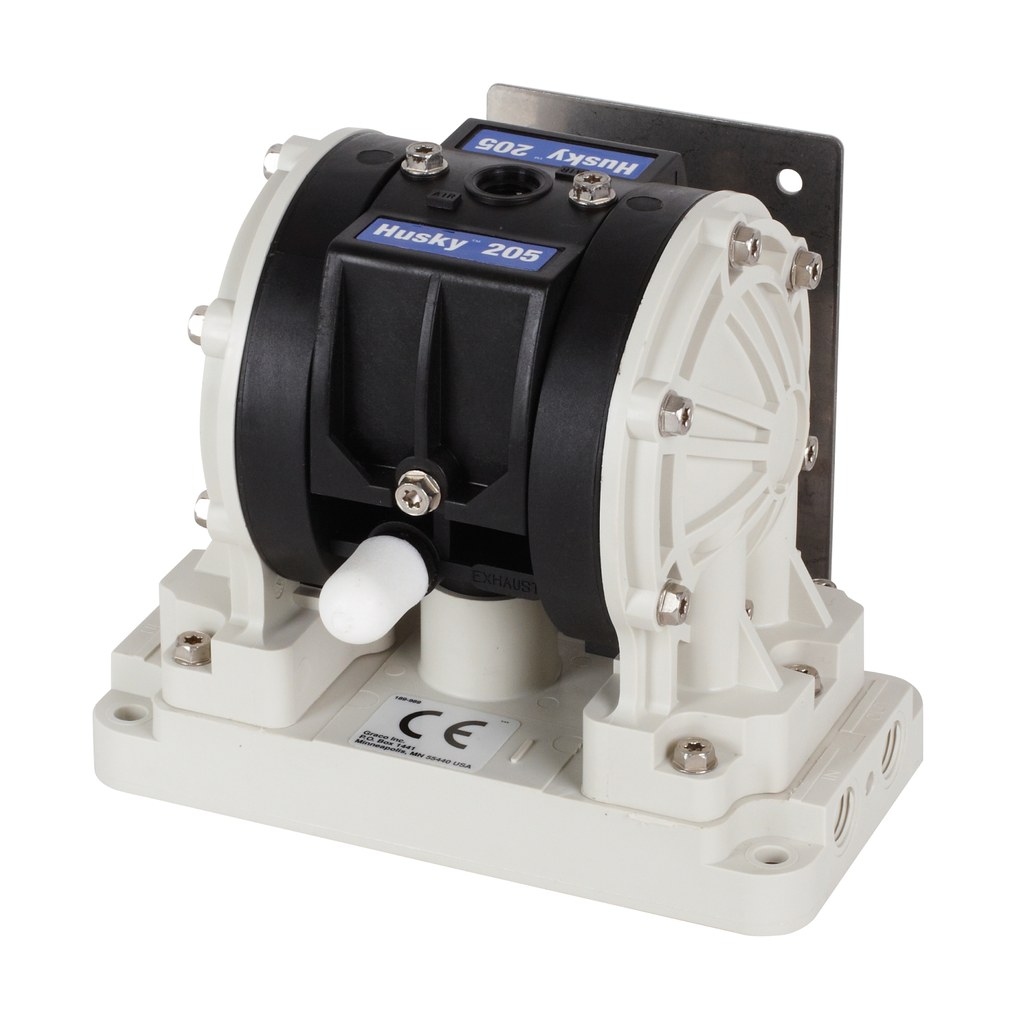

Graco Husky 205 air-operated double-diaphragm pump, Graco part number D150A1: PVDF Pump, PP Center Section, PVDF Balls & PTFE Diaphragm. Graco rates it at up to 5 gpm and 100 psi maximum fluid pressure, with a 100 psi maximum air inlet pressure and solids up to 0.06 in. Air-operated diaphragm pumps self-prime, can run dry and stall against a closed discharge without damage, which suits general transfer of chemicals, paints, coatings and wastewater. Match the wetted materials to the fluid before ordering. Stocked at Pump Depot in Kitchener, Ontario.

$501.00

1 in stock · ships in 2–5 business days

1
View cart
Part number
D150A1
Manufacturer
Graco
Availability
1 on hand
Fits
Graco Husky 205
Type
Air-operated double-diaphragm (AODD) pump, Graco Husky 205
Graco description
Husky 205 PVDF Pump, PP Center Section, PVDF Balls & PTFE Diaphragm
Fluid section
PVDF (Kynar)
Center section
Polypropylene
Seats / balls / diaphragm
PVDF (Kynar) / PTFE / PTFE/EPDM 2-Piece
Wetted materials
PVDF, Polypropylene, PTFE/EPDM
Fluid ports
1/4" inlet / 1/4" outlet, NPT, BSPT
Air inlet
1/4" NPT, BSPT
Max fluid pressure
100 psi (7 bar)
Max air pressure
100 psi
Max flow
5 gpm (18.9 L/min)
Max cycle rate
250 cycles/min
Max air consumption
9 scfm
Max solids
0.06 in
Operating temperature
Max 180 °F
Standards
CE
Pump weight (Graco)
2.8 lb
Shipping weight
2.8 lb (1.3 kg)
