Pump,1050S,SS/Sp/Sp/A
SKU 651006

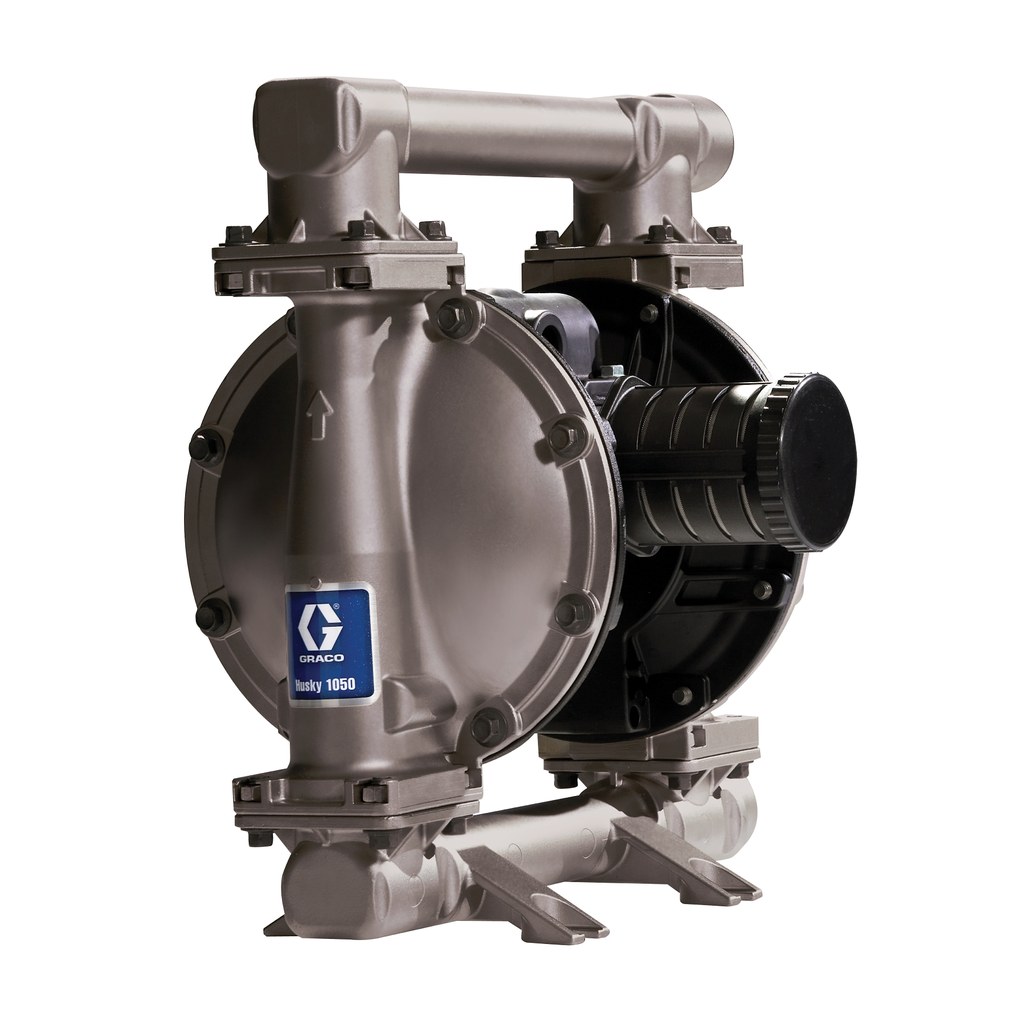

Graco Husky 1050 air-operated double-diaphragm pump, Graco part number 651006: SS 1 in. (25.4 mm) NPT Pump, AL Center Section, SS Seats, SP Balls & SP Diaphragm. Graco rates it at up to 50 gpm and 125 psi maximum fluid pressure, with a 125 psi maximum air inlet pressure and solids up to 0.125 in. Air-operated diaphragm pumps self-prime, can run dry and stall against a closed discharge without damage, which suits general transfer of chemicals, paints, coatings and wastewater. Match the wetted materials to the fluid before ordering. Stocked at Pump Depot in Kitchener, Ontario.
$1,520.00
1 in stock · ships in 2–5 business days
- Part number
- 651006
- Manufacturer
- Graco
- Availability
- 1 on hand
- Type
- Air-operated double-diaphragm (AODD) pump, Graco Husky 1050
- Graco description
- Husky 1050 SS 1 in. (25.4 mm) NPT Pump, AL Center Section, SS Seats, SP Balls & SP Diaphragm
- Fluid section
- Stainless Steel
- Center section
- Aluminum
- Seats / balls / diaphragm
- Stainless Steel / Santoprene / Santoprene
- Fluid ports
- 1" inlet / 1" outlet, NPT
- Air inlet
- 1/2" NPT
- Max fluid pressure
- 125 psi (8.6 bar)
- Max air pressure
- 125 psi
- Max flow
- 50 gpm (189 L/min)
- Max cycle rate
- 280 cycles/min
- Max air consumption
- 67 scfm
- Max solids
- 0.125 in
- Standards
- ATEX, CE
- Pump weight (Graco)
- 41.4 lb
- Shipping weight
- 41.4 lb (18.8 kg)
